Unlock the full potential of your KTM 690/SMC-R or GasGas 700 with the Rottweiler Performance Intake & Power Commander 6 Combo Kit. This performance package combines our high-flow Intake System with a Dynojet Power Commander 6 to deliver increased airflow, improved fueling control, stronger power delivery, and the ability to fine-tune your setup as your modifications evolve.
Rottweiler Performance Intake System

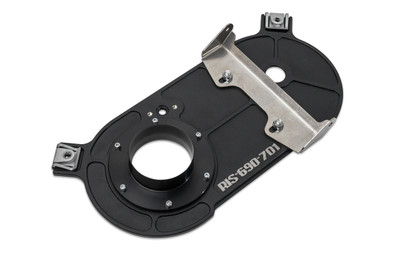

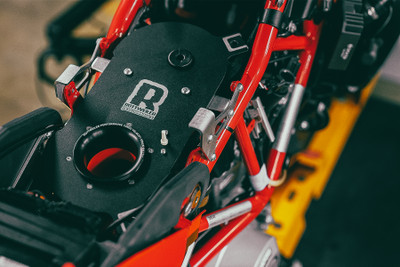

The Rottweiler Performance Intake System replaces the restrictive factory airbox with a high-flow induction system designed specifically to maximize airflow and performance from the 690/700 platform.
The system features our proprietary triple-layer foam filter and a custom-shaped Tuned Velocity Stack engineered to maximize intake tract length and air velocity. The velocity stack's bell-mouth design also helps keep water out while allowing clean air into the engine.
The result is a significant improvement in airflow and horsepower potential, along with tool-free access to the intake tract for quick and easy filter removal and maintenance.
Intake System Features:
- High-flow design engineered for increased horsepower and performance
- Proprietary triple-layer foam filtration
- Custom-shaped Tuned Velocity Stack for maximum intake velocity
- Bell-mouth design helps keep water out of the intake tract
- Tool-less filter access and removal for easy maintenance
- Approximately 1-hour installation
Dynojet Power Commander 6
The included Dynojet Power Commander 6 provides comprehensive control over fuel delivery, allowing you to properly tune the bike for the increased airflow of the Rottweiler Intake System and other bolt-on modifications.
The PC6 operates by adding or subtracting fuel from the motorcycle's OEM fuel maps and comes pre-programmed with an optimized map for stock configurations. When purchased through Rottweiler Performance, the PC6 can be pre-set with the best available map for your specific bike and modifications. Rottweiler Performance will also perform the initial setup free of charge when requested and provide continued access to maps created for your motorcycle for as long as you own it.
The PC6 can be used as a simple plug-and-play solution or expanded with additional Dynojet accessories as your needs change.
Power Commander 6 Features:
- Full control over fuel delivery
- Pre-programmed optimized maps
- Custom map setup available based on your motorcycle and modifications
- Ignition timing control on applicable 690/701 applications
- Accelerator pump functionality
- Warm-up fuel adjustments
- Maps per gear when used with a POD-300
- Auto-Tune compatibility
- POD-300 compatibility for data logging and additional tuning control
- Dynojet Map Switch compatibility for switching between two maps while riding
- Compatible with Dynojet Auto Tune for dynamic AFR-based tuning
- USB connectivity for easy tuning and map adjustments
Why Combine the Intake & PC6?
The Intake System increases the amount of air available to the engine, while the Power Commander 6 provides the ability to precisely control fueling to match your setup. Together, they provide a complete foundation for extracting more performance from the 690/700 platform while giving you the flexibility to adjust fueling as additional modifications are added.
The PC6 is not required for safe fueling when simply installing the Rottweiler Intake System on a 690. Testing on a completely stock motorcycle showed AFR values remaining within safe limits across the RPM range. However, the PC6 provides full control over fueling and opens the door to additional performance, custom mapping, multiple maps, ignition adjustments, Auto Tune, and other tuning capabilities.
Rottweiler Performance Pre-Setup Program
When requested, Rottweiler Performance will pre-configure your Power Commander 6 based on your motorcycle and modifications at no additional charge. Simply provide your year, make, model, and modifications when ordering.
Your PC6 can be supplied ready to plug and play with the appropriate available map, along with a custom certificate identifying your name, PC6 model and serial number, the setup performed, and a Rottweiler Performance signature.
Fitment
- KTM 690 Enduro / SMC-R — 2019+
- GasGas 700 ES / SM — 2023+
Important: The Power Commander 6 is compatible with 2019+ US-spec models. 2021+ EURO5 models are not compatible with the included fuel dongle and may trigger a check-engine light. Verify your motorcycle's year, market, and emissions specification before ordering.
