Design Engineering - Reflect-A-GOLD Thermal Protection - 1-1/2"x30' Roll

Name: Design Engineering - Reflect-A-GOLD Thermal Protection - 1-1/2"x30' Roll
Brand: Design Engineering
SKU: 10395
Price: 69.95 USD
Availability: InStock

SKU: 10395

No reviews | Write a Review

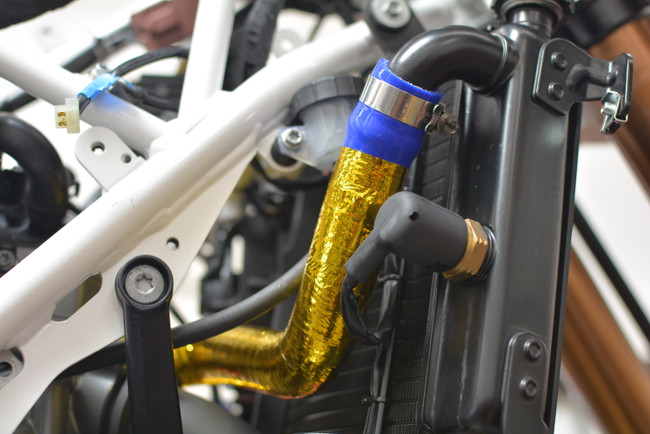

Design Engineering - Reflect-A-GOLD Thermal Protection added to coolant hose — Click on the image to zoom.

Rottweiler Recommendations

$69.95

Shipping Weight: 1.00 LBS

Shipping: Calculated at checkout

Product Dimensions

Width:: 12.00 (in)
Height:: 12.00 (in)
Depth:: 5.00 (in)

Product Details

Highly reflective, this is the ideal material to reflect radiant heat away from fuel tanks, body panels, seat bottoms: any area that needs protection from heat. We used this very material during multiple builds including our 701 Omega Builds
with great success. Protecting the vulnerable fuel tanks was necessary for optimal performance. Both sheet and roll come are made of a metalized polyimide laminated to glass cloth with a high temperature adhesive backing for use in extreme temperature swing environments. The material is thin enough to wrap fuel lines and complex surfaces like the underside of fuel tanks and seat pans.

NOTE: Dimensions are 1-1/2 Inches wide by 30 Feet long

Features:

Handles continuous temps up to 800°F
Resists UV degradation for long-term performance
Adhesive protected by release liner rated up to 325°F
0.0065" thick
Easy to apply, won't lift off
Radiant Heat Resistance: 800°F
Adhesive Heat Resistance: 325°F
