Baja Designs

LED Headlight Replacement Assembly - KTM 690 Enduro / SMC-R (2012-2018)

Name: LED Headlight Replacement Assembly - KTM 690 Enduro / SMC-R (2012-2018)
Brand: Baja Designs
SKU: 507071
Price: 454.95 USD
Availability: InStock

SKU: 507071

No reviews | Write a Review

Baja Designs - KTM 690 Enduro / SMC-R (2012-2018) - LED Headlight Assembly — Click on the image to zoom.

Rottweiler Recommendations

$454.95

Shipping Weight: 3.00 LBS

Shipping: Calculated at checkout

Special Order

Special
Order

Product Dimensions

Width:: 6.00 (in)
Height:: 5.00 (in)
Depth:: 6.00 (in)

Warranty

Warranty Information

30 Day Satisfaction Guarantee & Lifetime Limited Warranty Honored by Baja Designs

Product Details

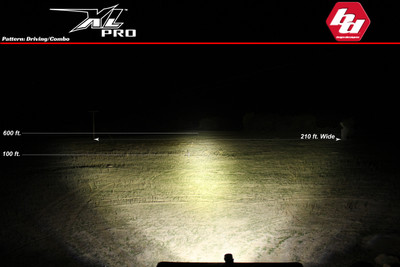

Baja Designs XL Pro LED Headlight Assemblies for the 2012-2018 KTM 690 Enduro / SMC-R sets the benchmark for all other headlights. 4 CREE LED Bulbs producing incredible lighting force in a usable Driving/Combo light sets the bar for maximum trail coverage. When moments demand it you can dim this unit by 20%. A true plug and play kit utilizing your stock front headlight mask. When you need to turn night into day rely on Baja Designs to get the job done. Driving/Combo Light Pattern provides both a wide driving light (44 degree) and a (6 degree) spot which covers slow technical and fast riders alike. (Refer to Lighting Zone Image)

Features:

Satisfactions Guarantee – 30 Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It.
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

"XL" Specifications:

Lumens: 4,900 Utilizing 4 Cree XP-L LEDs
Wattage/Amps: 40W / 2.90A
Dimensions: 4.43" x 3.65" x 4.43"
Weight: 1.85 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hardcoated Polycarbonate
Housing: Hard Anodized & Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

Includes: KTM Hi-Low Relay Harness

NOTE: The Hi Beam indicator will remain on even though the light is running in the Low Beam. This does not compromise the bikes electrical system.
