- Width:
- 6.00 (in)
- Height:
- 8.00 (in)
- Depth:
- 3.00 (in)
Warranty Information
See http://www.powercommander.com/powercommander/Default.aspx for warranty information.Product Details

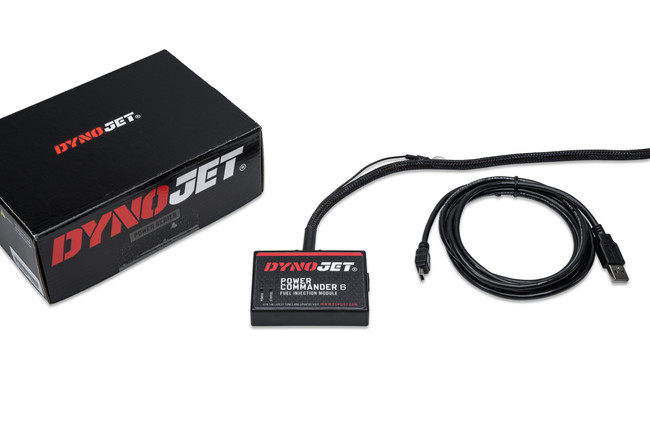

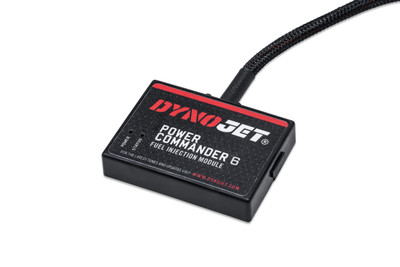

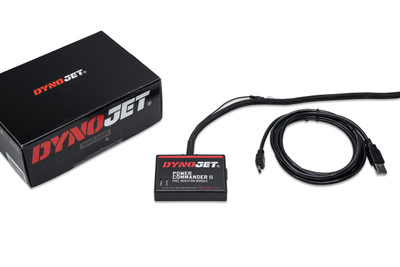

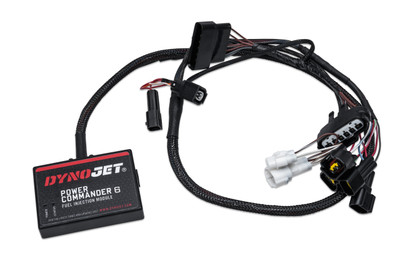

Power Commander 6 is by far the most comprehensive way to properly and easily tune the fuel delivery of your fuel injected motorcycle, and it goes well beyond just tuning alone.
When you purchase a Power Commander from Rottweiler performance, we will not only perform the initial set-up FREE of charge if asked, but you will also have access to any maps that we have created for your bike as long as you own your motorcycle!
“But I don't know anything about fuel injection tuning, is this a big learning curve?”
Absolutely not. They are completely plug and play, but we can make them even better with some basic information from you with our 'Pre-Setup Program'. A service we provide free of charge! Just call us or leave us notes in your order to call and we will set it all up for you, 'PLUG AND PLAY', with a signed certificate right in the box. Furthermore, with some simple understanding you will quickly find that tuning with a Power Commander is far easier than old school jetting, and takes nothing more than a laptop, tablet or computer that runs Windows and connects with the included USB cable.
A Power Commander operates by adding or subtracting a percentage of fuel from your bike’s OEM fuel maps. If you wanted to add 10% fuel everywhere, you would simply input the number 10 in every cell for each cylinder. If you want 10% less, you would insert -10 in every cell. That's it! PC6s come pre-programmed with an optimized map for stock, but if you have some bolt on items and want something more, just select the from the list of modifications and we will install the best map we have for your bike’s configuration.
THERE IS NO LAG TIME AS THESE SIGNALS ARE INSTANT!
Aside from fueling control, you will be able to benefit from the extras outlined below: (If you don't want any of these, you don't have to do anything. They are only enabled when you learn how to turn them on.)
Advanced options are:
- Accelerator pump features
- Ignition timing (this feature is included on the PC6 for 690 & 701 models)
- Warm up fuel features
- Maps per gear (POD-300 required to unlock this feature)
- Auto Tuned maps per gear (Auto Tune required to unlock this feature)
- POD-300 for data logging
OPTIONAL accessories that will work seamlessly with a Power Commander:
In addition to giving you full and simple control over your bikes fueling, the PC6 is also the key to the following accessories:
Dynojet Map Switch: A simple handlebar mounted switch that will allow a Power Commander to have two different maps loaded into it and allow you to toggle between them on-the-fly, while you ride! When used with an Auto Tune unit, it will turn Auto Tune on and off. (see HERE for more info)
Dynojet Auto Tune: Auto Tune adds the ability for you bike to “tune itself” while you ride! It’s basically like installing your own personal rolling dyno that is always searching for the perfect AFR (air-fuel-ratio). (see HERE for more info)
POD-300: When added, it can display any of the channels that are being tracked such as RPM, throttle position, injector duty, percentage of fuel alterations, ignition advance, air fuel ratios (requires Auto Tune) and more. The POD-300 will also allow changes to mapping in 1/3 adjustments. For example, if your rev limit is 10,000 RPM, you can adjust the fuel (+/-) in any percentage from 0-3300, 3300-6600, and 6600 to 10,000. The POD-300 also supports data logging as many channels as you choose and will then export to Excel for further inspection. (see HERE for more info)
The list goes on but don't be intimidated, this is a plug and play item that can be upgraded later as desired or as you learn more about the functions. Don't want to? Don't worry, this is as easy or as in depth as you want to make it. Think of a Power Commander like a Swiss Army Knife. You can use just the one tool, or you can use them all.
IMPORTANT NOTE: As of July 2018, Dynojet has ceased to include O2 optimizers with Power Commander 6's to comply with perceived domestic and international regulations. At Rottweiler Performance we know optimizers play an integral part in conjunction with a Power Commander 6 and will include a free set if chosen below.
